We have a wide variety of products for Valve Automation

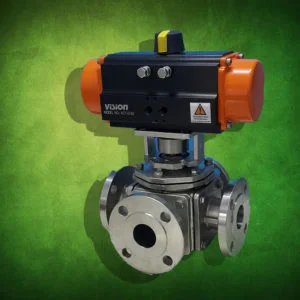

3 way 4 way Ball Valve
Ball Valve Design Features
MANUFACTURING STANDARDS : AS PER BS 5351
FACE TO FACE AS PER ANSI B 16.10
ENDS : FLANGED END AS PER ANSI B 16.5 R.F & BUTTWELD AS PER ASME B 16.25 & SCREWED TO BSP/NPT
TESTED AS PER BS 6755
AVAILABLE WITH LEVER , GEAR & PNEUMATIC ACTUATOR OPERATED
SIZES AVAILABLE FROM 15mm TO 300mm

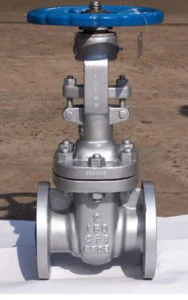

Gate Valve
Gate Valve Design Features
MANUFACTURING STANDARDS : API-600
FACE TO FACE AS PER ANSI B 16.10
ENDS : FLANGED END AS PER ANSI B 16.5 R.F & BUTTWELD AS PER ASME B 16.25
TESTED AS PER API 598
AVAILABLE WITH HAND WHEEL , GEAR & PNEUMATIC ACTUATOR OPERATED
Butterfly Valve
Butterfly Valve Design Features
BODY : CAST IRON
DISC : SS 316/SS 304/CAST IRON/
SEAT : NITRILE/EPDM/SILICON
MAIN SHAFT : AISI 410
TEMPERATURE : UP TO 1200 C
WORKING PRESSURE : < 0.5 BAR TO 10 BAR
LEAKAGE : VI TIGHT SHUT OFF
GLAND PACKING : GRAPHITE
Ball Valve Flanged End
Ball Valve Flanged end Design Features
DESIGN : 3 PIECE DESIGN 2 WAY 150#
BODY : CF8/WCB/CF8M
BALL : CF8/CF8M
WORKING PARTS : CF8
SEAT : PTFE
MOUNTING : WELDED NAMUR STANDARD BRACKET
OPERATION : RACK & PINION TYPE PNEUMATIC DOUBLE/SINGLE ACTING ACTUATOR
TEMPERATURE : 180C
HYD. TEST PRESSURE : 21 KG/CM2
ENDS : SCREWED END/FLANGED END
Globe Valve
Globe Valve Design Features
MANUFACTURING STANDARDS : BS-1873
FACE TO FACE AS PER ANSI B 16.10
ENDS : FLANGED END AS PER ANSI B 16.5 R.F & BUTTWELD AS PER ASME B 16.25
TESTED AS PER BS 6755
AVAILABLE WITH HAND WHEEL & GEAR OPERATED
SIZES AVAILABLE FROM 15mm TO 600mm
Swing check Valve
Swing check Valve Design Features
MANUFACTURING STANDARD: BS : 1868 & API 6D
FACE TO FACE AS PER ANSI B 16.10
ENDS: FLANGED END AS PER ANSI B 16.5 R.F & BUTTWELD END AS PER ASME B 16.25
TESTED AS PER BS 6755
SIZES AVAILABLE FROM 15mm TO 600mm.
Solenoid Valve
Solenoid Valve Design Features
MODEL : ASD
ACTUATOR : DIAPHRAGM TYPE INTERNAL PILOT OPERATED
TYPE : NORMALLY OPEN/CLOSE
SIZE RANGE : 1/2” TO 2”
BODY : SS 304
DIAPHRAGM : NITRILE
PRESSURE : 0.5 TO 10 BAR
TEMPERATURE : UPTO 850C
ENDS : SCREWED/FLANGED END
WAY MIXING & DIVERTING CONTROL
WAY MIXING& DIVERTING CONTROL Valve Design features
ACTAUTOR : ALUMINIUM PRESS DIE CAST
VALVE BODY : SS 304
WORKING PARTS : SS 304
PRESSURE : UPTO 16 BAR TO 42 BAR
TEMPERATURE : UPTO 1800C
PRESSURE : UPTO 3.5 TO 7 BAR
MEDIA : AIR, STEAM, GAS, WATER, OIL&CHEMICALS
END : SCREWED END & FLANGED END
HEAVY DUTY PNEUMATIC CYLINDER SINGLE/DOUBLE ACTING Valve
HEAVY DUTY PNEUMATIC CYLINDER SINGLE/DOUBLE ACTING Valve Design features
MODEL : ARM
BORE SIZE : 40MM TO 450 MM
STROKE : UPTO 2500MM
END COVER : CI
BARREL : SS STEEL
SEALS : BUNA – N
PISTON : C.I / M.S
PRESSURE : UPTO 12 BAR
PULSE JET SOLENIOD VALVE (DUST COLLECTOR)
PULSE JET SOLENIOD VALVE (DUST COLLECTOR)
SIZE RANGE : 1” TO 1.1/2”
BODY : ALUMINIUM DIE CAST
DIAPHRAGM : CANVAS/NITRILE/PU
PRESS : 0.6 TO 10 BAR
TEMP : 800C / 1250C/ UPTO 1250 C ON REQUEST
AVAILABLE VOLT : ALL STD VOLTAGE AVAILABLE
Knife Gate Valve
Knife Gate Valve Design Features
PRESSURE :150PSI.
TEMPERATURE :80 DEG C.
BODY CHEST :SOLID ONE PIECE CASTING OF CAST IRON
SEAT : INTEGRAL TO BODY. WITH EPDM SEAL RING
GATE :AISI SS 304.
ENDS : WAFER TYPE LUGGED.
Angle Type Valve
Angle Type Valve Features
TYPE : NORMALLY CLOSE/OPEN
TYPE : ½” TO 3”
BODY : CF8/CF8M
PNEUMATIC PRESSURE : 3.5 TO 7 BAR
WORKING PRESSURE : UPTO 16 BAR
WORKING TEMP : 180 C
